Overview
3D Printed Bamboo Structure explores how natural materials can be integrated with digital fabrication techniques through custom-designed, parametric joints.
By scanning individual bamboo elements and generating 3D-printed connectors tailored to their unique geometries, the project constructs a 1.8-meter-tall modular bamboo structure. The system demonstrates how computational design can enhance precision, stability, and scalability in hybrid material construction.
Context & Motivation
Bamboo is a lightweight, sustainable material with excellent structural properties, yet its natural variability presents challenges for standardized construction.
Traditional bamboo structures often rely on manual binding or generic connectors, which limits precision, repeatability, and structural optimization. This project investigates the question:
How can digital fabrication compensate for material irregularity while preserving the advantages of natural materials?
By combining material scanning with parametric joint design, the project aims to bridge craftsmanship and computational precision.

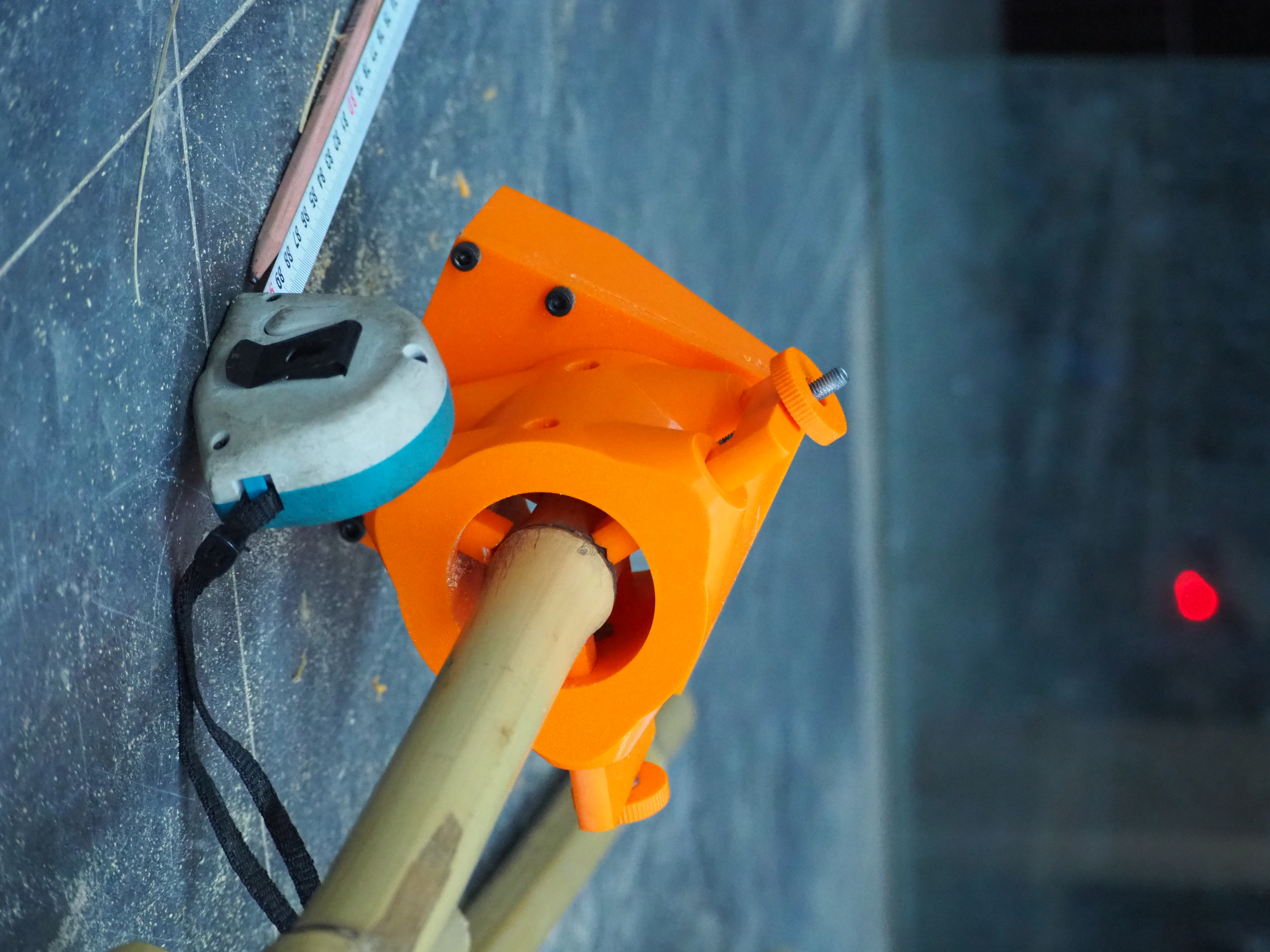

Material Analysis & Scanning
A total of 66 bamboo segments were measured and scanned to capture variations in diameter, curvature, and surface irregularities.
These measurements informed the design of:
- •Connection angles
- •Locking geometries
- •Tolerance ranges for assembly
Rather than forcing bamboo into standardized dimensions, the system adapts the joint geometry to each individual element.

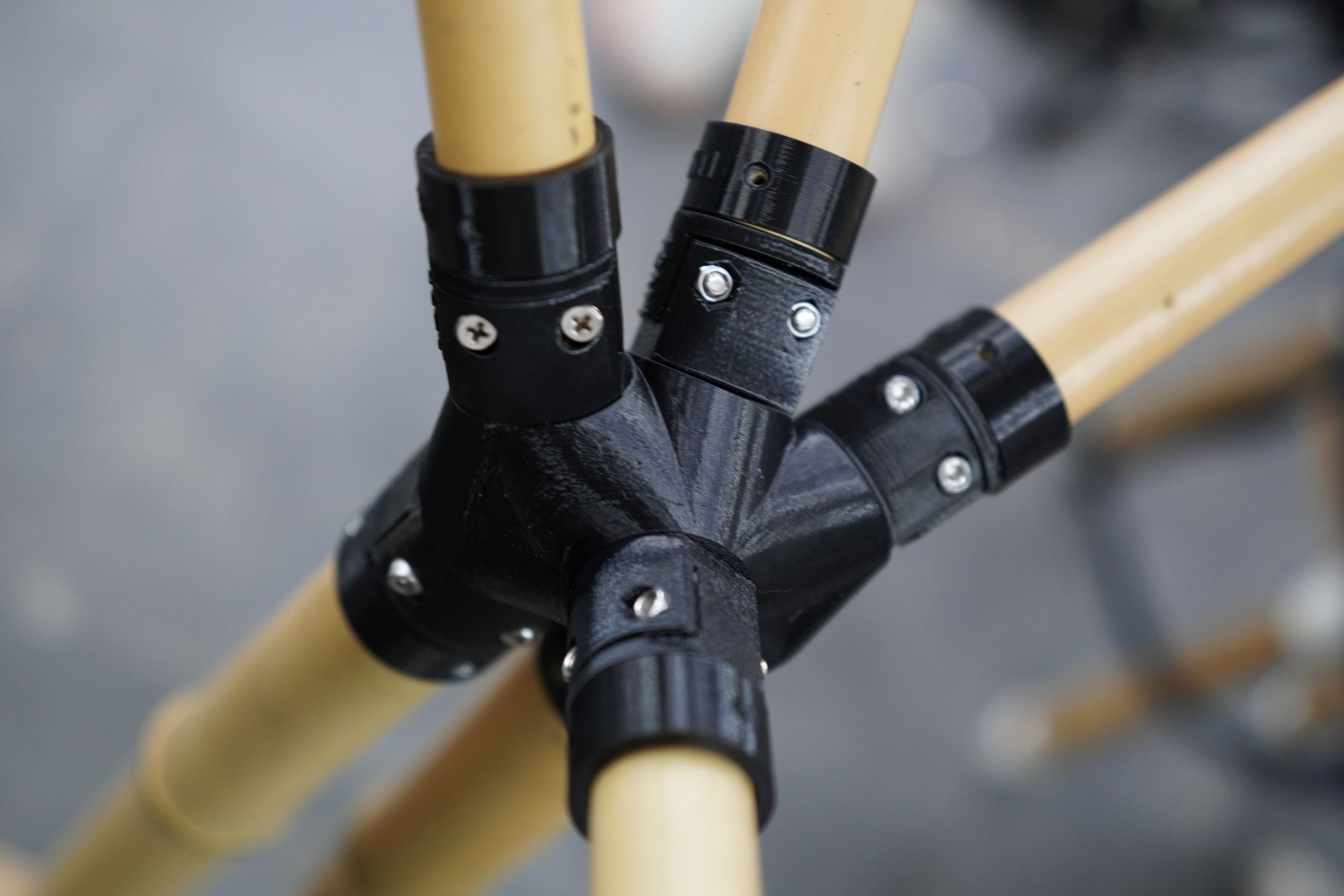

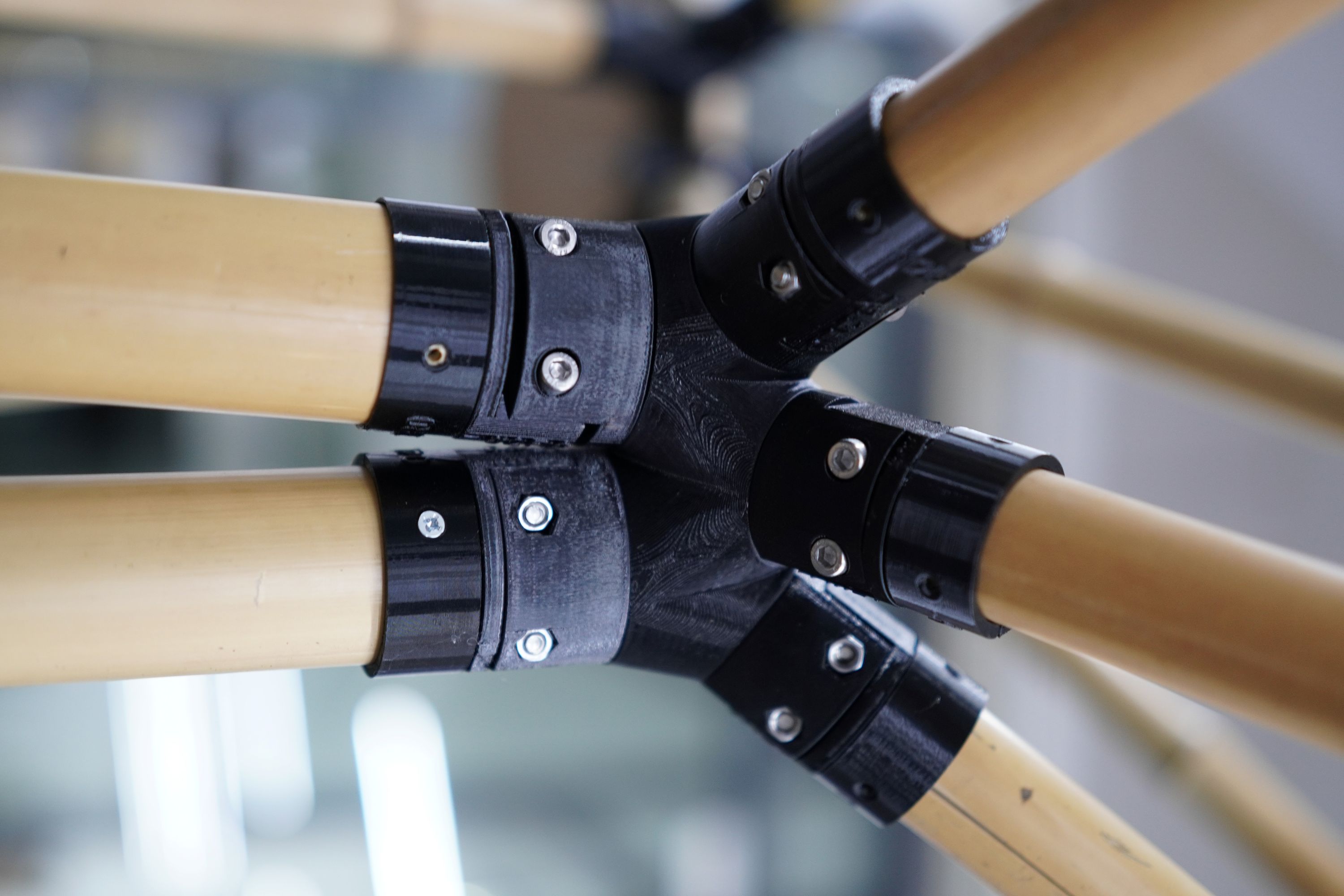

Joint Design & Fabrication
Based on the scanned data, custom 3D-printed joints were generated using a parametric workflow.
Key design considerations included:
- •Secure locking under load
- •Ease of assembly and disassembly
- •Structural continuity across multiple members

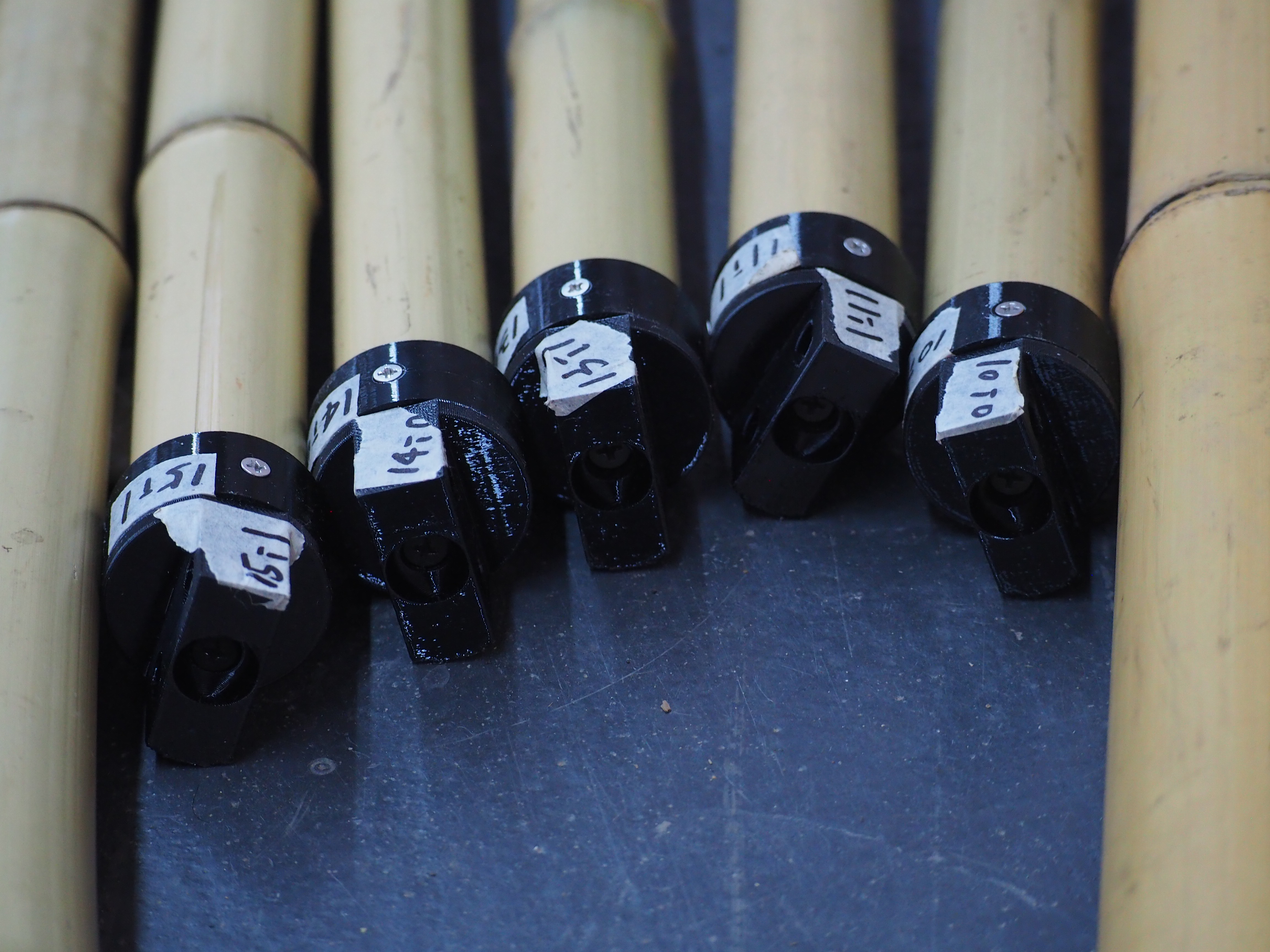

In total, 312 joint components were fabricated and tested to evaluate fit, strength, and repeatability.
Structural System

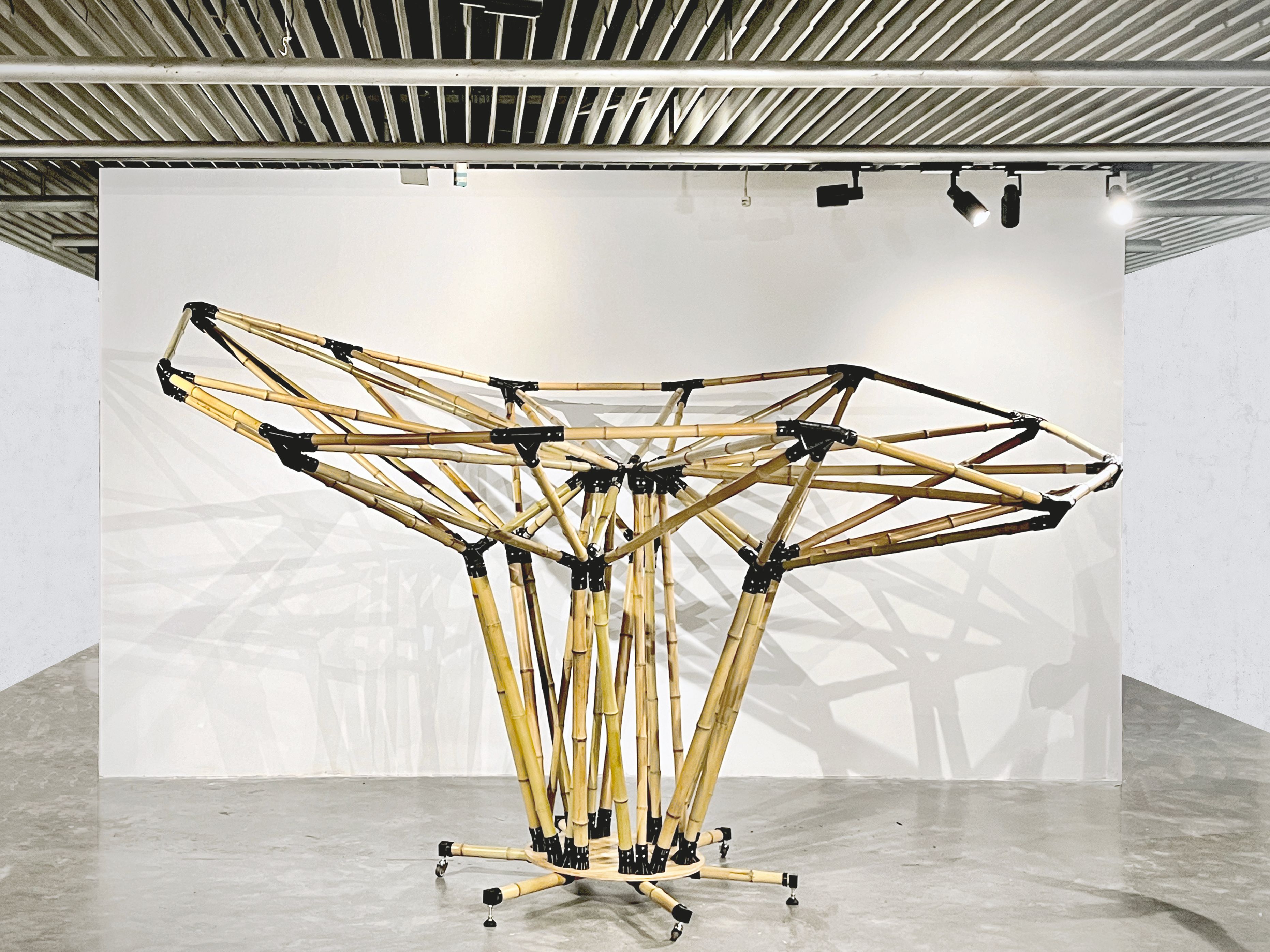

The final structure reaches 1.8 meters in height and demonstrates a modular assembly logic that can be extended or reconfigured.

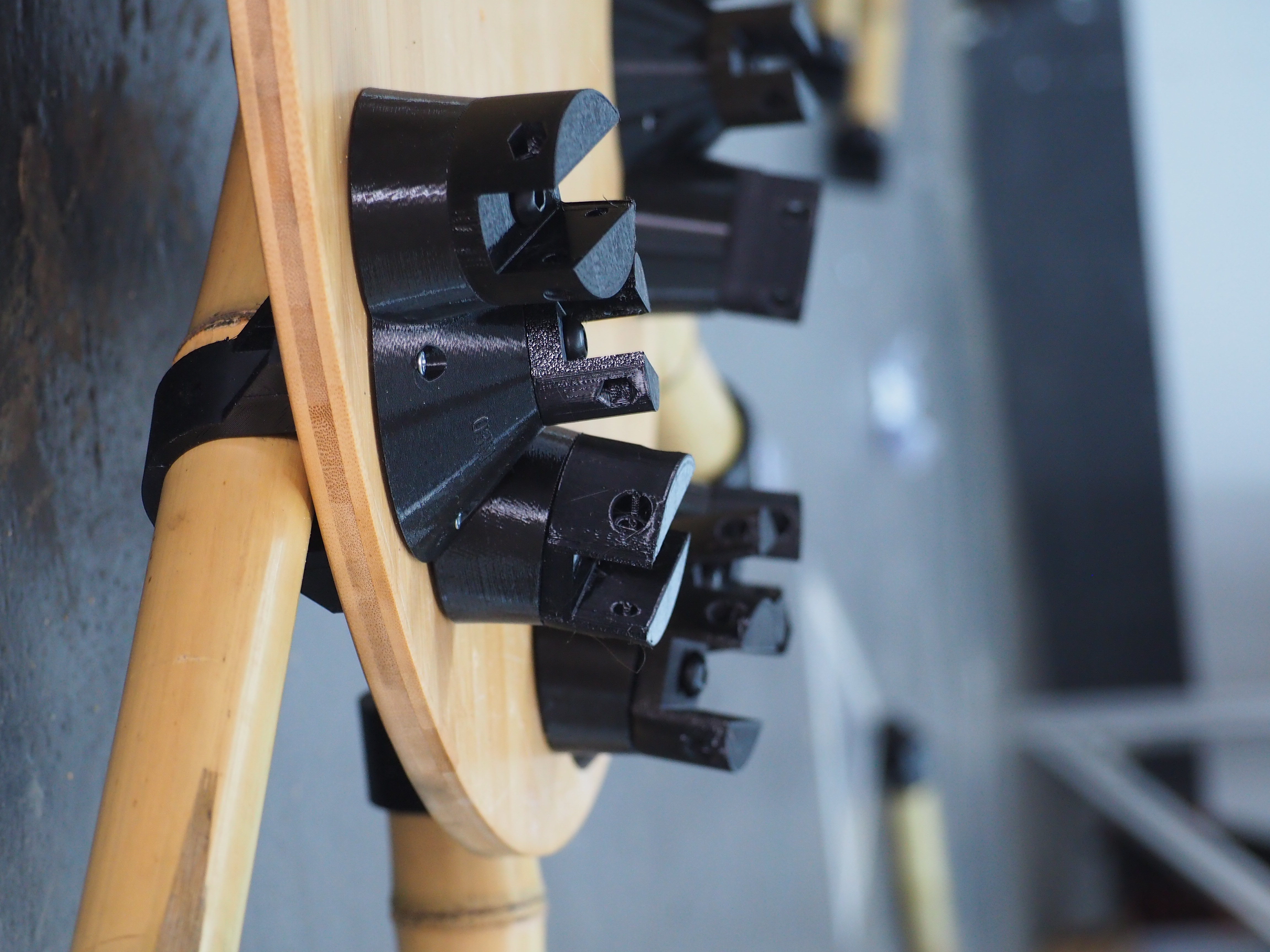

In parallel, a hexagonal interlocking prototype was developed to explore alternative aggregation strategies. This variation highlights the system’s flexibility and potential for larger-scale architectural applications.
The structural system emphasizes:
- •Modularity
- •Material efficiency
- •Constructability through repetition

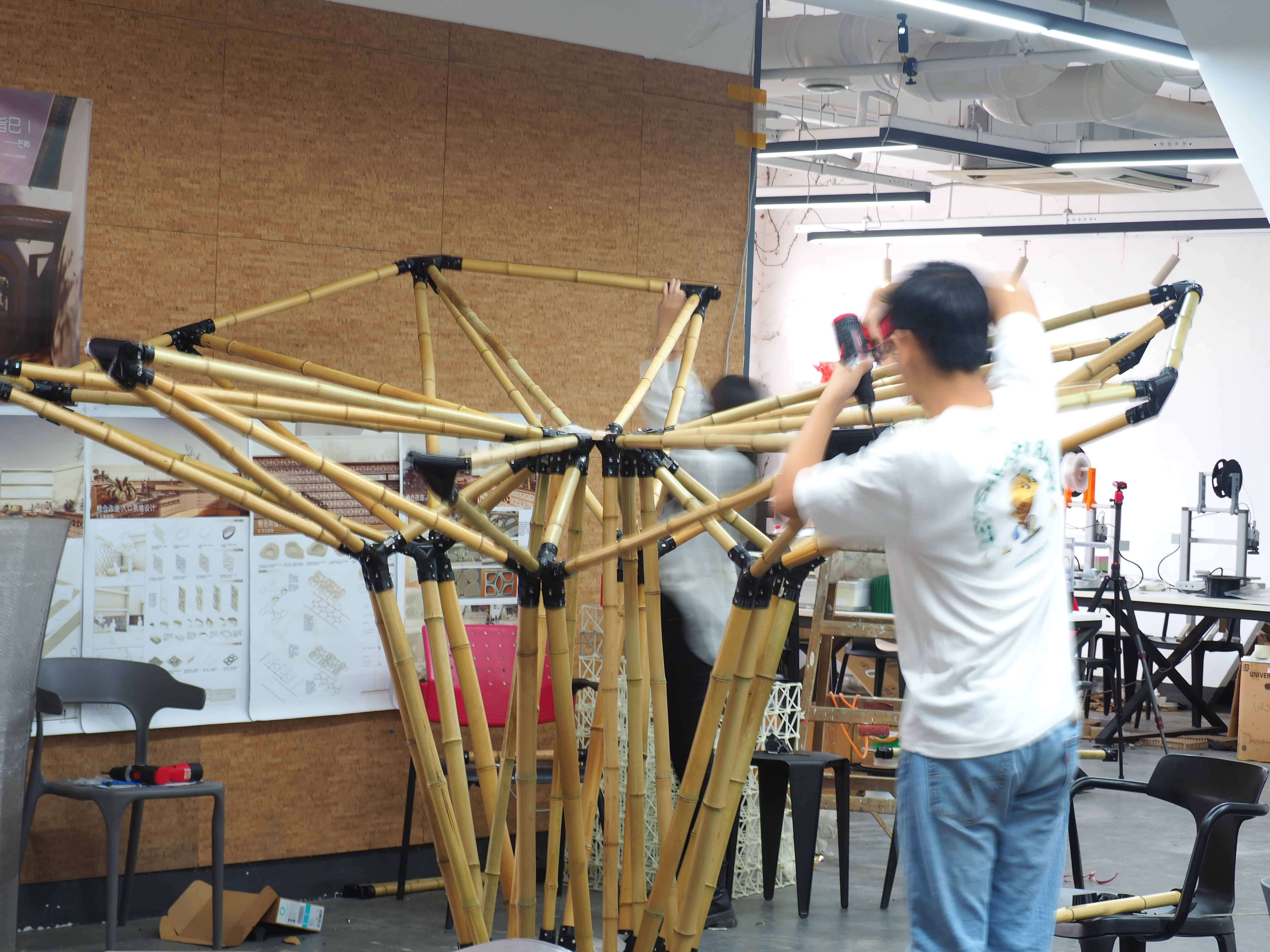

Assembly & Prototyping
The construction process validated the effectiveness of the joint system through hands-on assembly.
Physical testing revealed:
- •Improved stability compared to conventional bamboo binding methods
- •Consistent alignment across complex joint intersections
- •Reduced construction error despite material irregularities
The prototype confirms that digital joints can significantly enhance the structural performance of natural materials.
Outcome
The project resulted in:
- •A full-scale bamboo structural prototype
- •A parametric joint system adaptable to varying material conditions
- •A fabrication workflow combining scanning, computation, and physical assembly
The work demonstrates how digital fabrication can enable sustainable construction methods without sacrificing material authenticity.
Reflection
This project reshaped my understanding of fabrication as a negotiation between material behavior and computational control.
Key insights include:
- •Embracing material variability rather than eliminating it
- •Parametric systems can enhance, not replace, craftsmanship
- •Hybrid material construction benefits from tight integration between design and fabrication
Future work could explore structural simulation, load testing, and scaling the system for architectural deployment.
